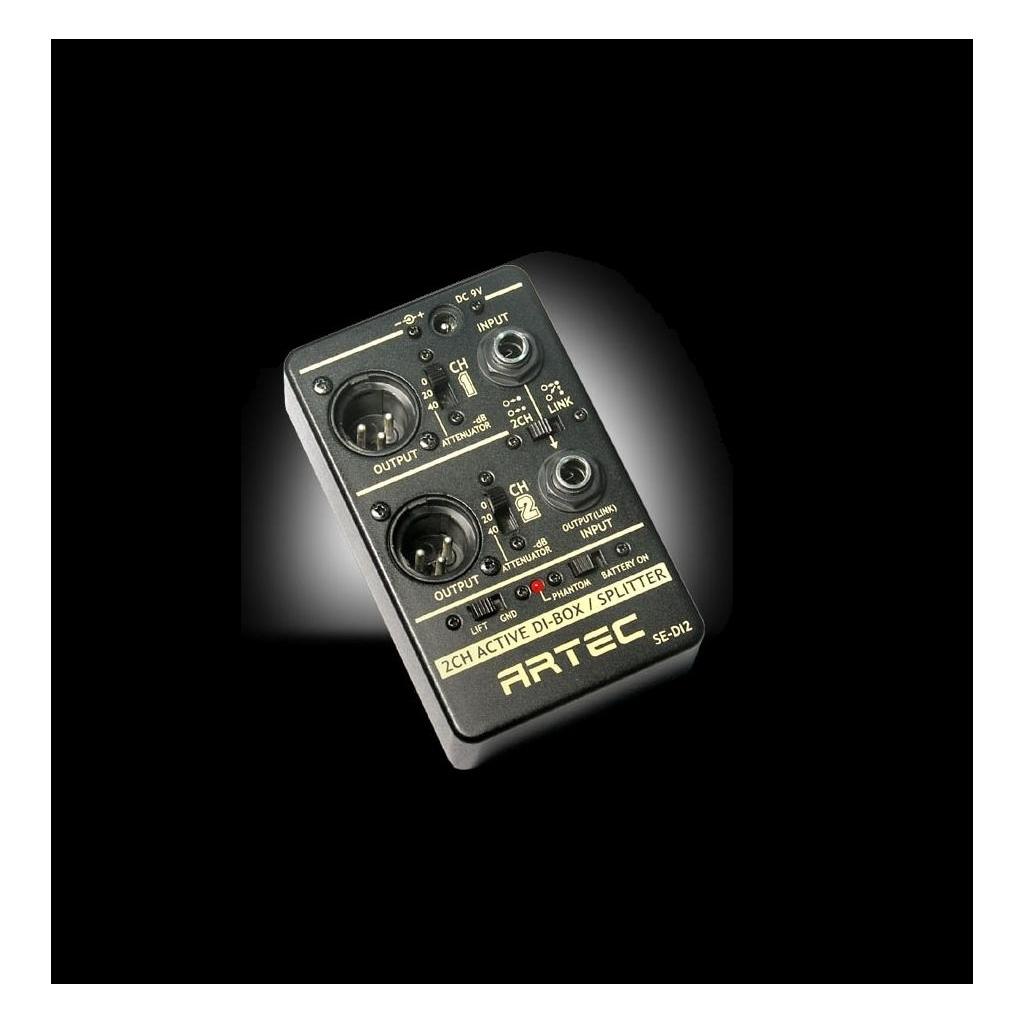

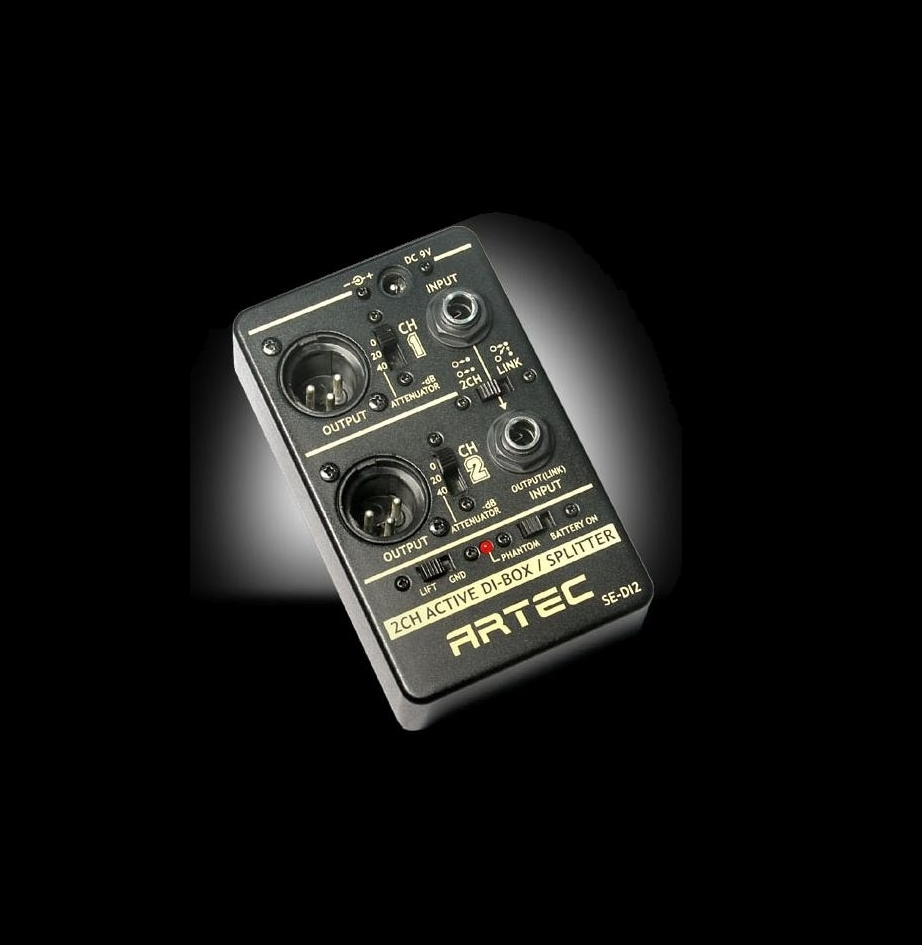

SE-DI2

2ch Active DI-BOX / Splitter

Group : DI-Box, Direct Interface

SE-DI2 has two individual channels of active direct interface. This pedal can work with 9V battery or 48V phantom power from linked amp or console. Link switch can select individual 2 ch mode or two balanced output link mode. Each channel has gain attenuator switch. Ground LIFT switch can isolate the ground level between amps or console. but phantom power not applied on ground lift mode.


SPECIFICATION

Power supply: DC9V or 48V phantom power

Consumption: 1.5mA

Dimension: 75.5(w) x 115.5(h) x 47.5(d) (mm)

Weight: 260g (include battery)
